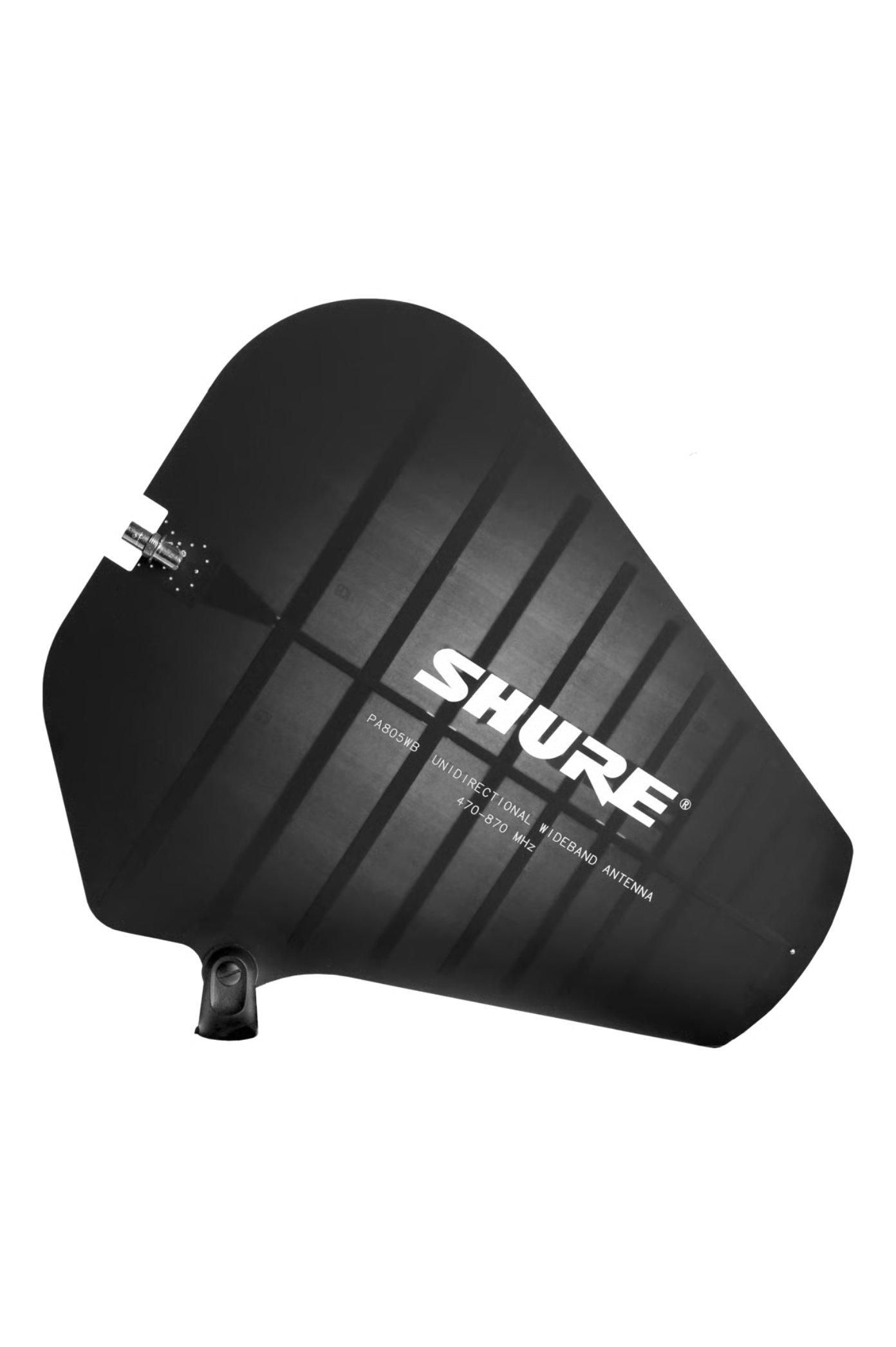

Shure PA805 Passive Directional Antenna
The Shure PA805 is a compact, rugged passive directional antenna engineered to improve RF performance and extend wireless microphone and in-ear monitor coverage in demanding live sound and broadcast environments. Designed for use with Shure wireless systems and compatible RF distribution equipment, the PA805 offers reliable gain in the desired coverage area while minimizing interference from unwanted directions.
Features:
Directional design: Focuses RF energy toward the coverage area, increasing reception range and reducing off-axis interference.
Passive operation: No power required—simple to install and integrate with existing RF systems and distribution amps.
Wideband performance: Covers common wireless microphone and IEM frequency bands for flexible deployment.
Robust construction: Durable housing and connector hardware built for stage, touring, and permanent installations.
Mounting options: Compact form factor allows antenna to be pole- or wall-mounted, or paired in arrays for greater gain and beam shaping.
SMA/BNC/Type N options: Available with common RF connector types to match system requirements (verify connector variant before purchase).
Applications:
Live sound reinforcement and touring
Houses of worship and theaters
Broadcast ENG and studios
Corporate AV and fixed installations
Wireless mic and in-ear monitor systems requiring directional coverage or interference rejection
Specifications:
Type: Passive directional antenna
Frequency range: Covers standard UHF wireless bands (confirm model-specific range)
Gain: Directional gain improvement over omnidirectional antennas (model-dependent)
Connector: Available in common RF connector types—confirm variant
Mounting: Pole/wall/stand compatible
Impedance: 50 ohms
Why choose the PA805? The Shure PA805 offers a practical, low-maintenance solution for projects that need targeted RF coverage without added power or complexity. Its durable build and wideband performance make it suitable for both temporary rigs and permanent installations where improved reception and interference control are required.
The Shure PA805 is a directional antenna for increased range and reduced interference as compared to omnidirectional 1/2-wave antennas.

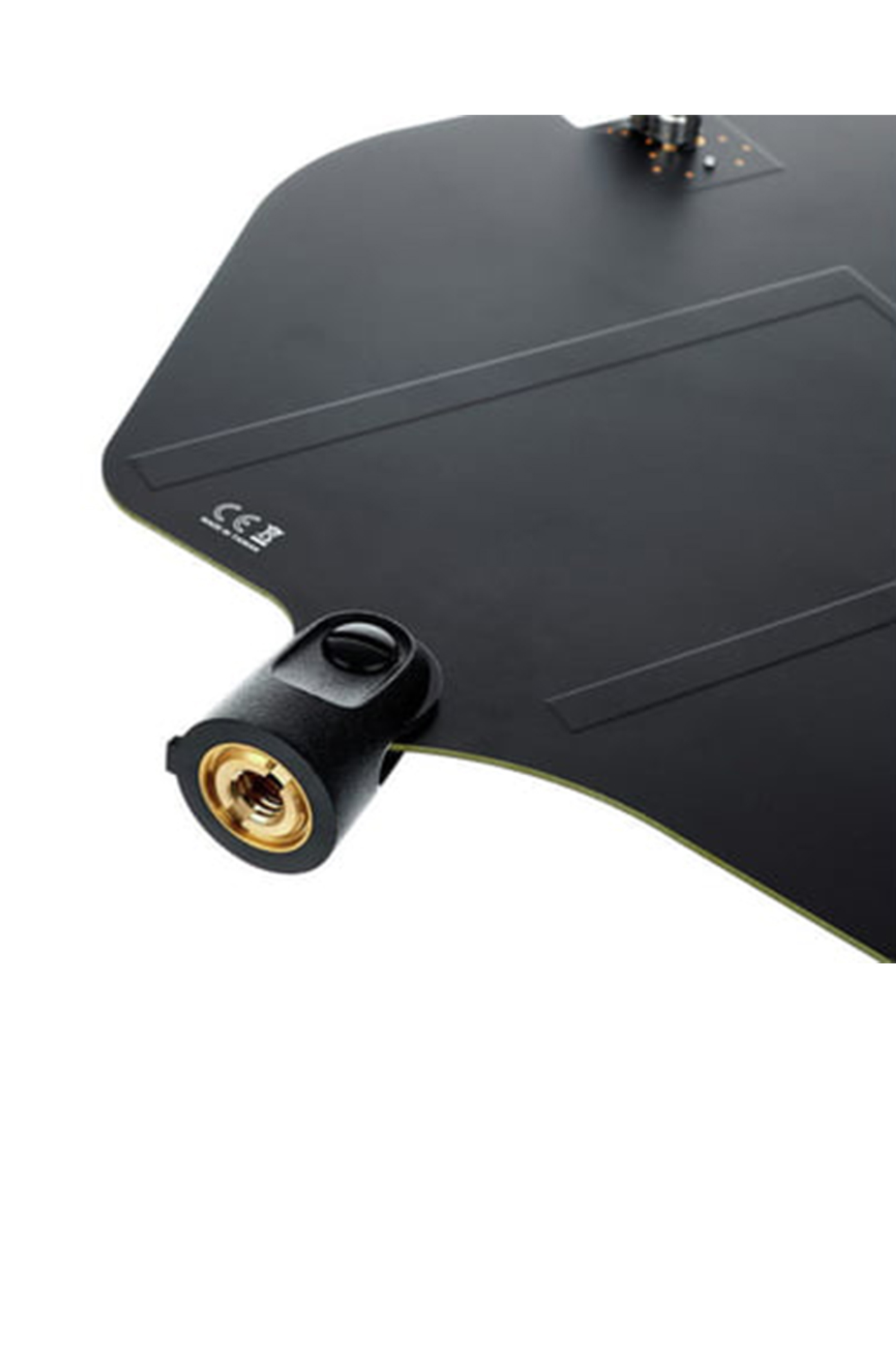

The PA805 can be mounted on a microphone stand or mounted to a wall using the integral swivel adapter bracket.

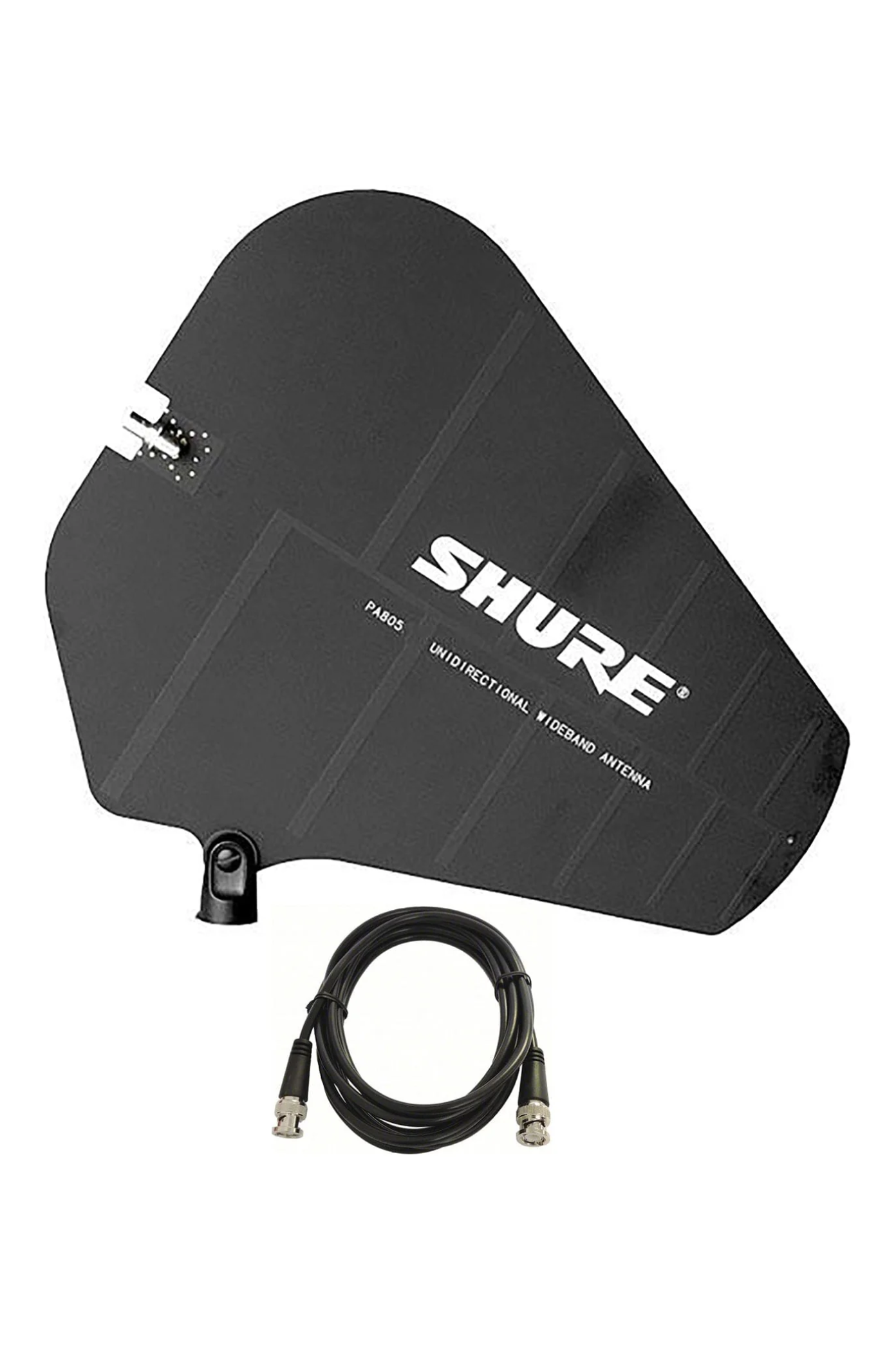

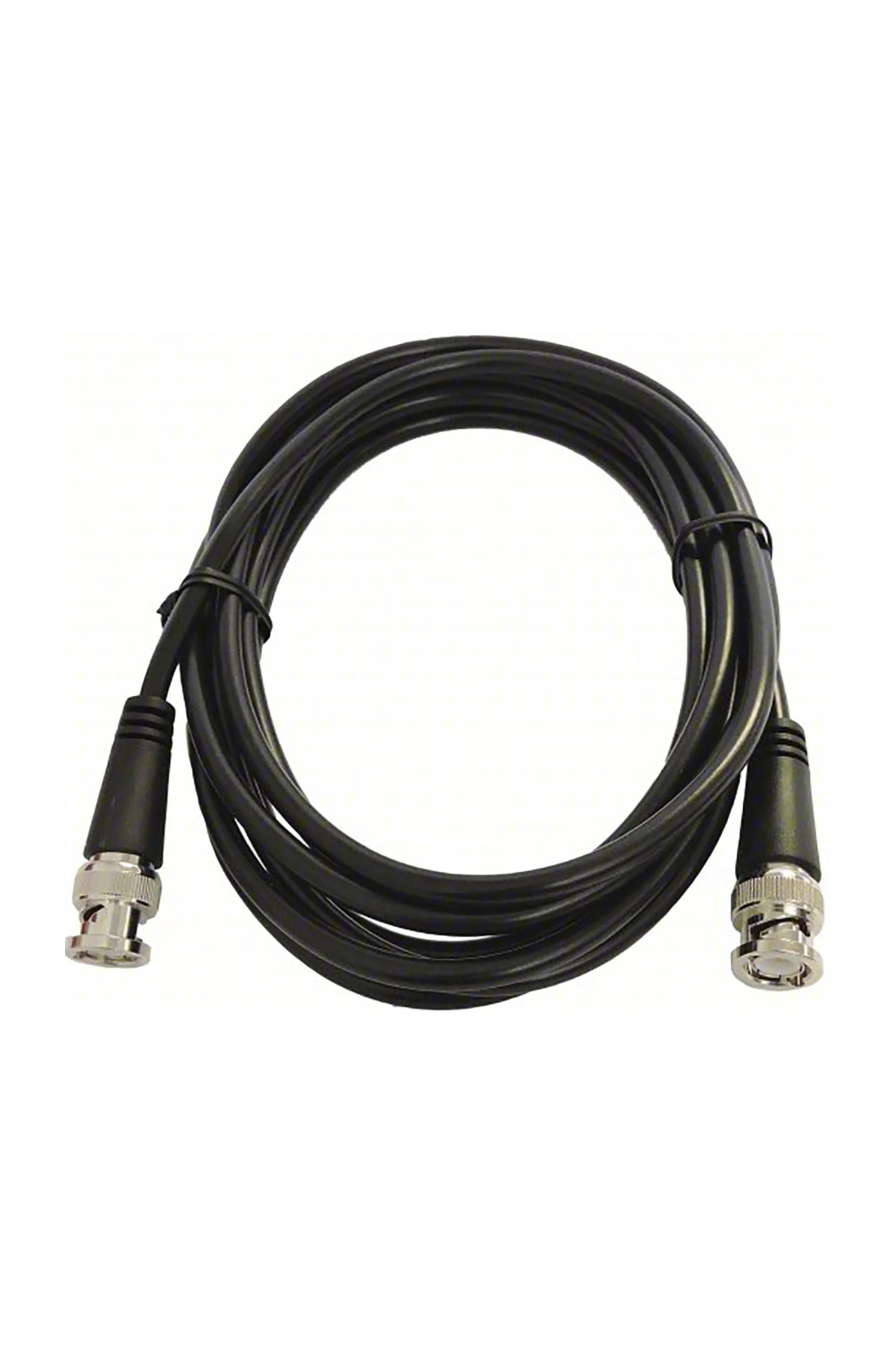

Includes: #95L2035 Cable (10-ft BNC)

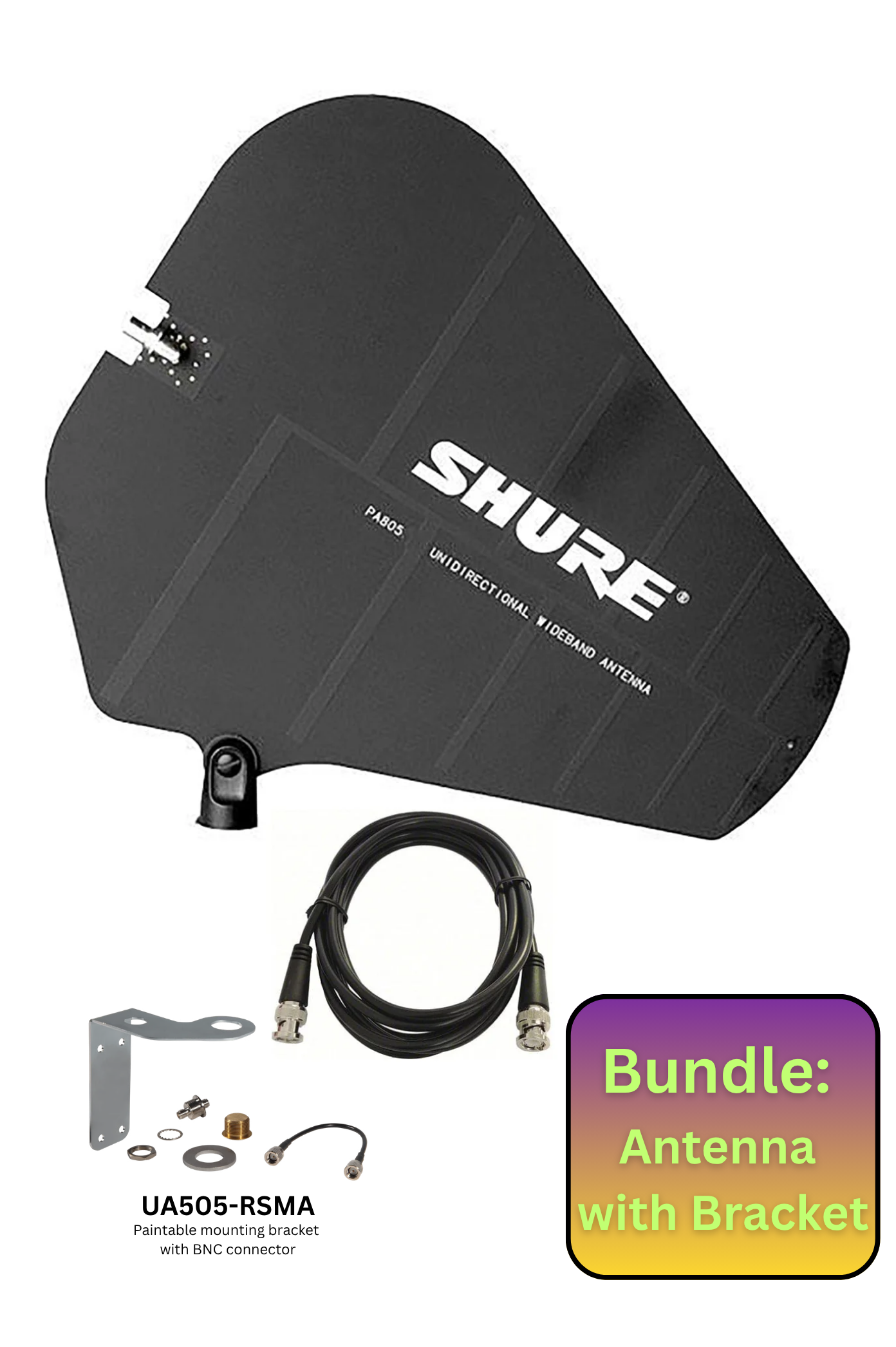

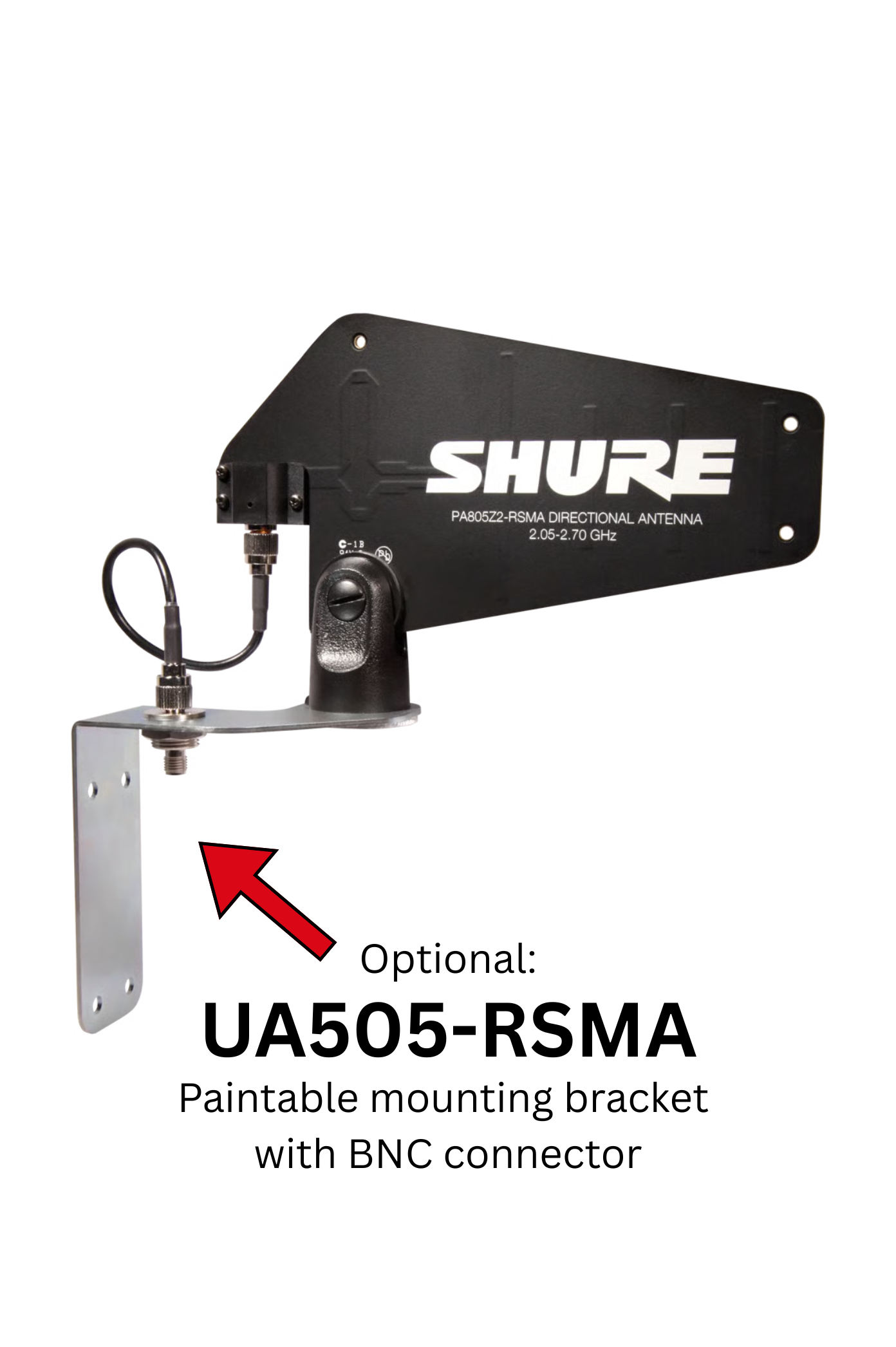

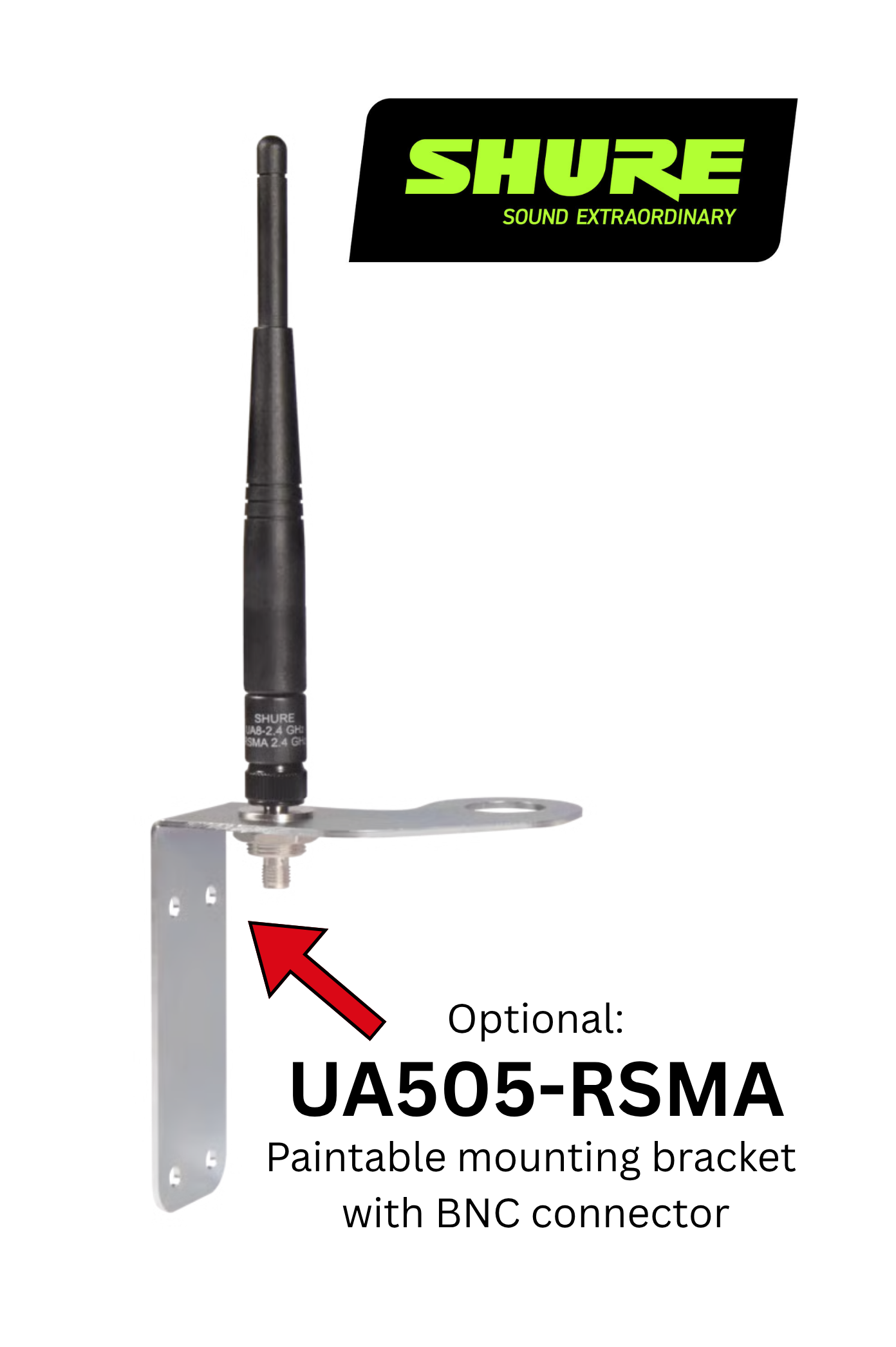

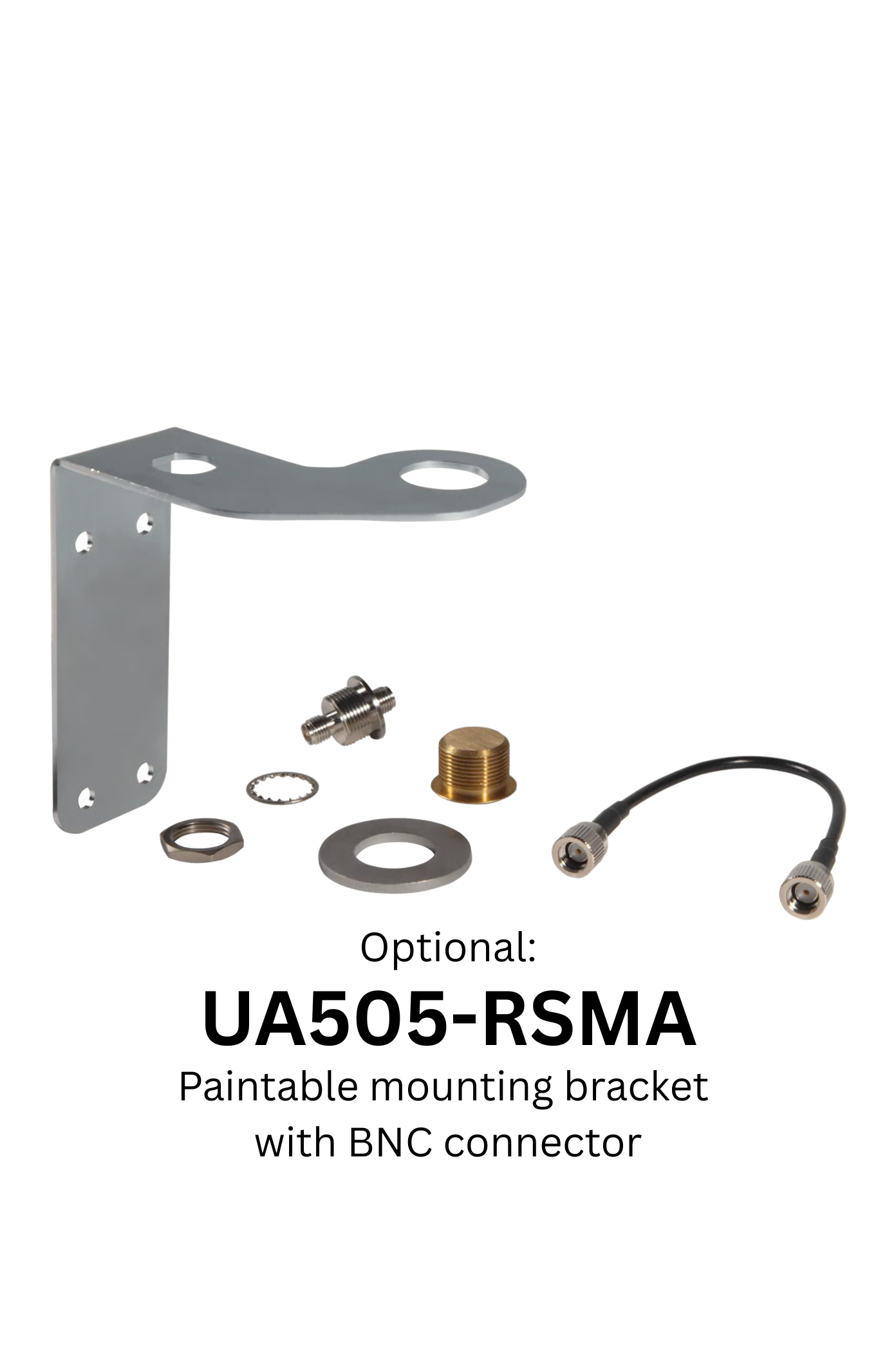

Optional: Mounting bracket: UA505-RSMA
Note: Verify the specific PA805 variant for exact frequency range, connector type, and gain figures to ensure compatibility with your wireless system.
Model #s: (Frequency Range)
PA805SWB (470-952 MHz)
PA805X (944-952 MHz)
