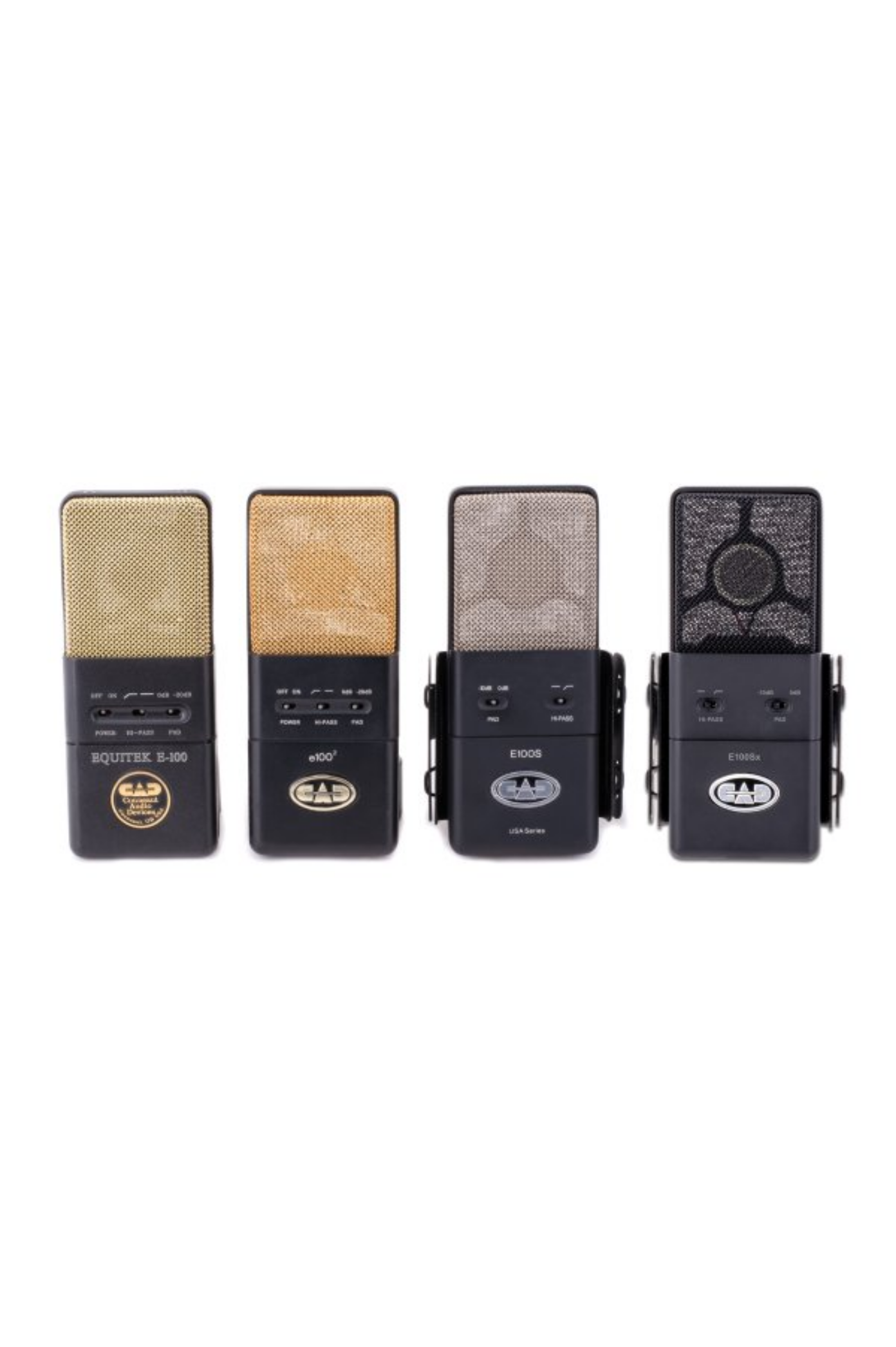

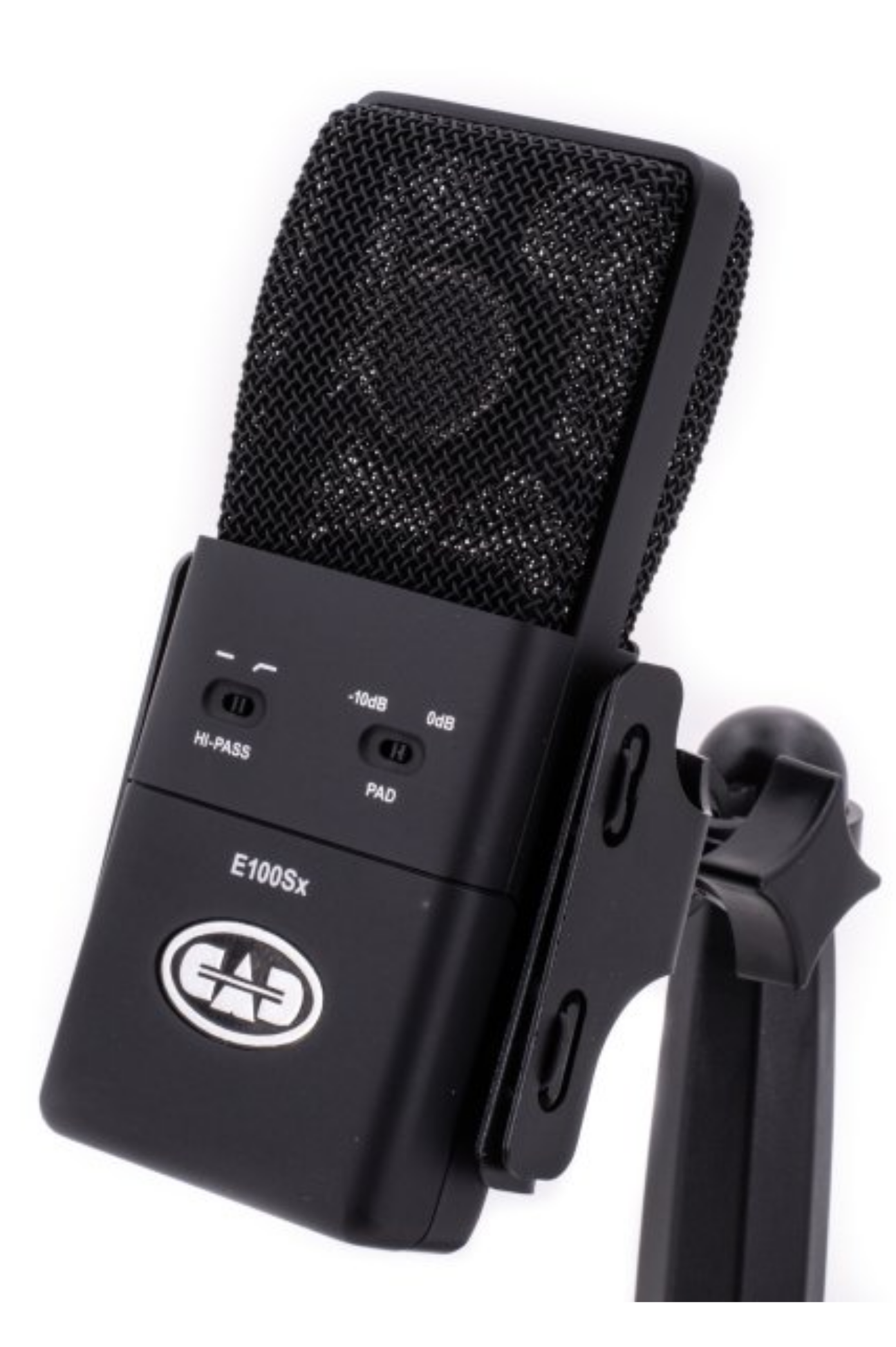

Equitek™ series microphones are world-renowned for their quality and performance – the product of industry artisans engineering original designs with world-class performance and specifications. The fourth generation E100, the new E100Sx Large Diaphragm Studio Microphone continues the 30 year tradition of excellence and captures your performance with a smooth, articulate and true-to-life profile, with the smooth, vintage tone CAD is known for.
Specifications:
Operating Principle: Condenser
Polar Pattern: Supercardioid
Frequency Response: 20 Hz - 18 kHz
Sensitivity: -32 dBV (25 mV) @ 1 Pa
Impedance: 150 ohms
Max SPL: 136 dB (with pad engaged)Self Noise9.5 dBA

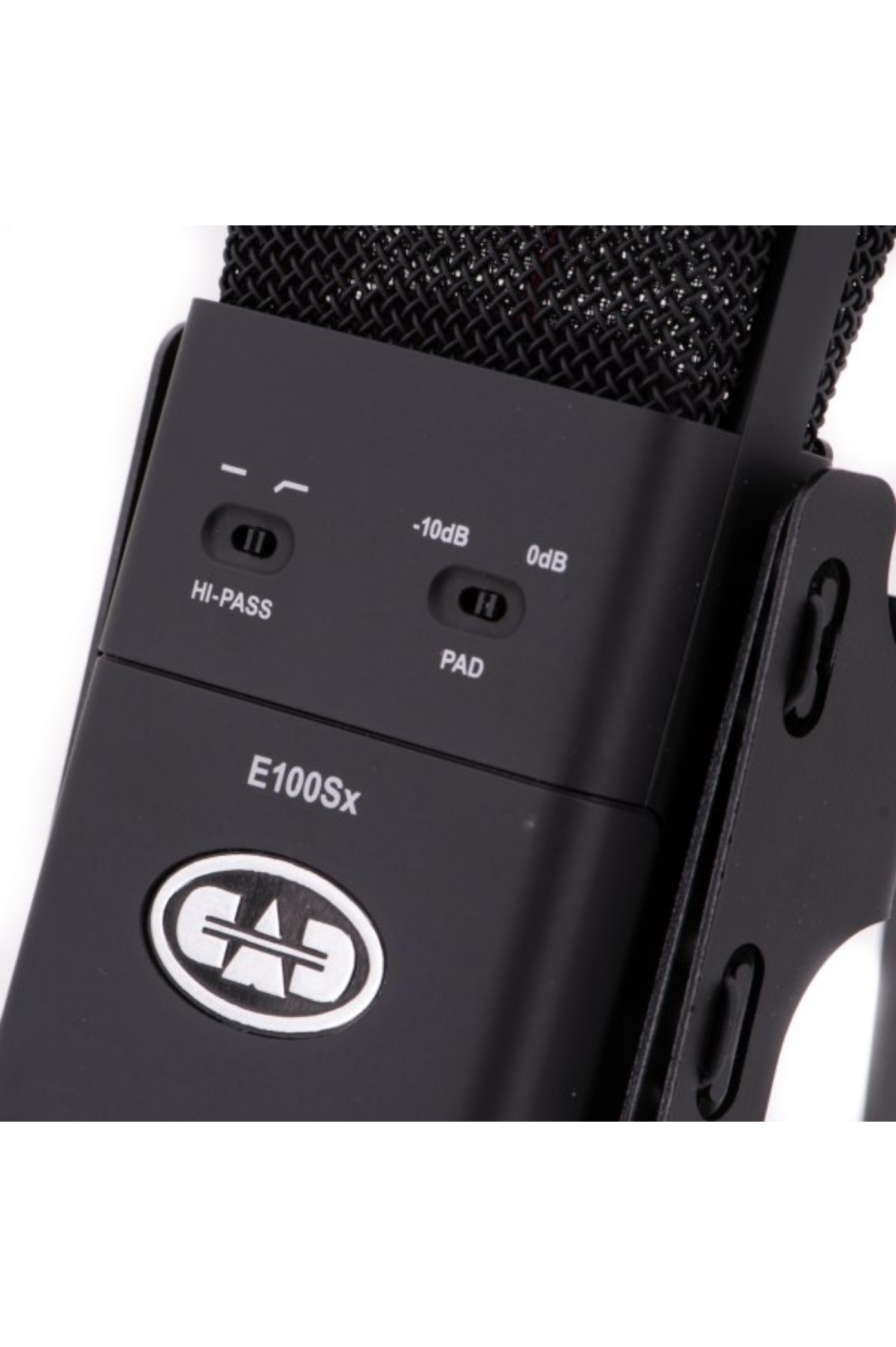

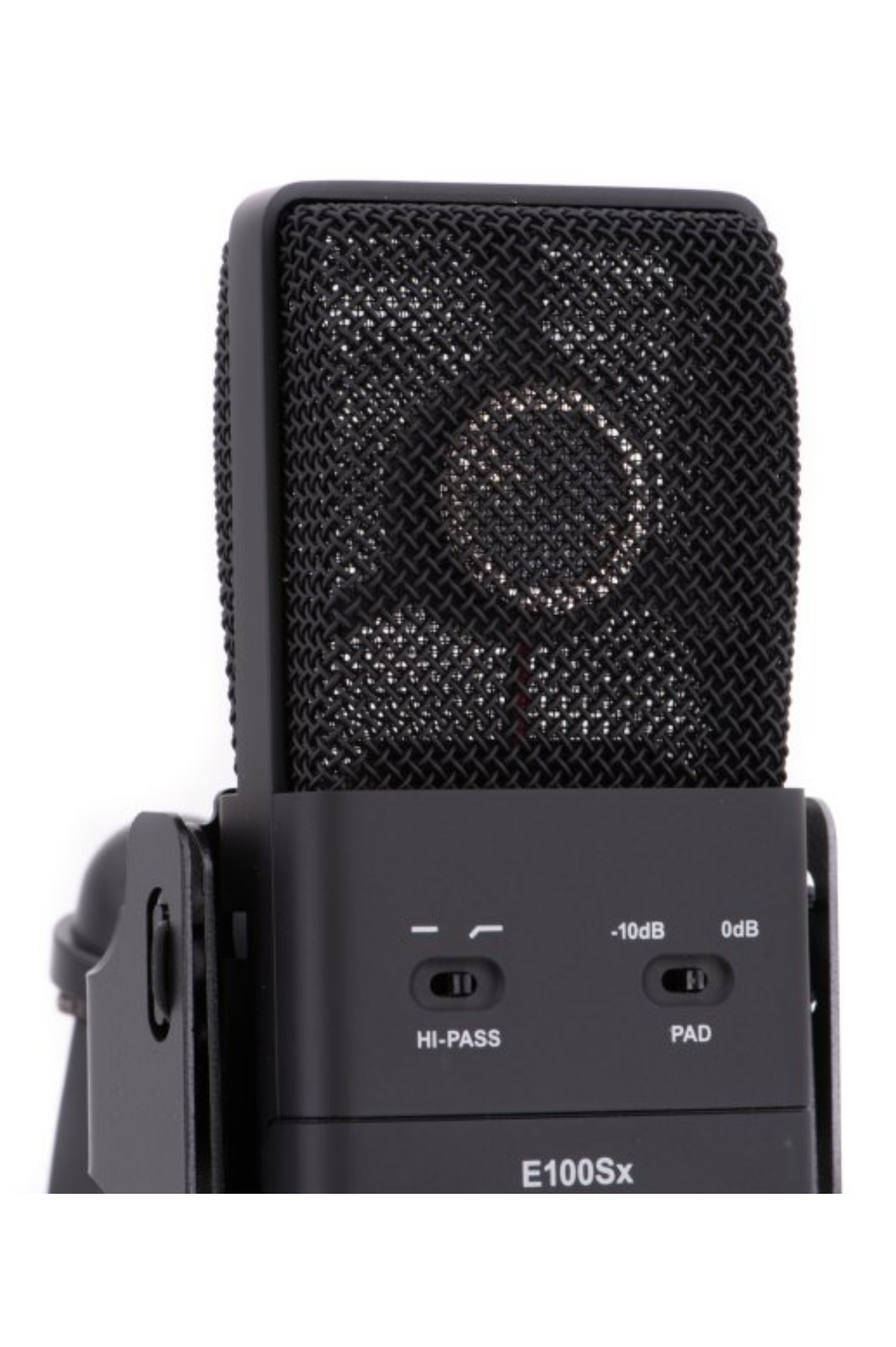

High Pass: 100 Hz, 6 dB/oct
Dimensions - Mic Only: 6.0625" (15.4 cm) tall × 2.245" (5.7 cm) wide × 1.990" (5.05 cm) deep

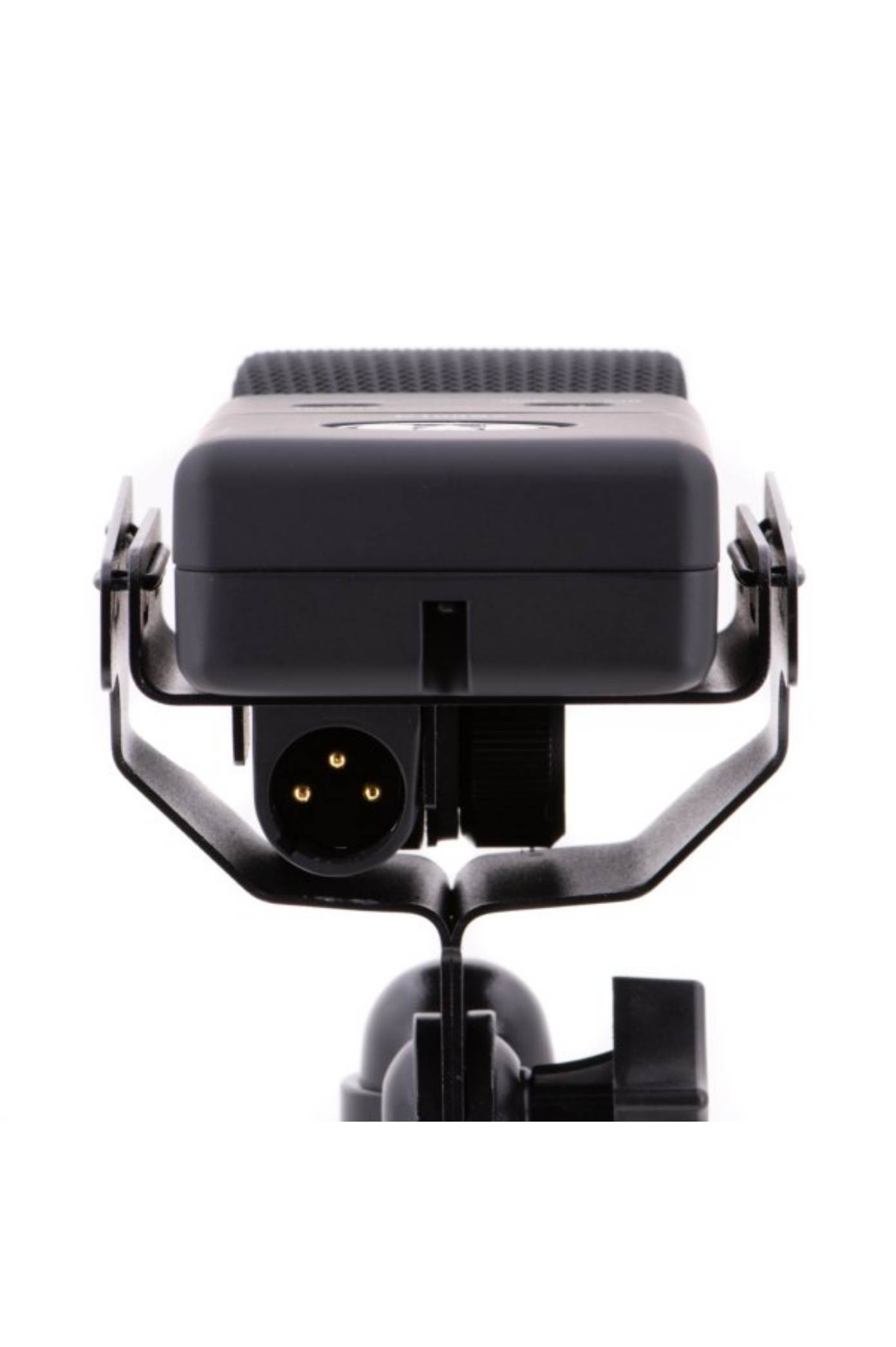

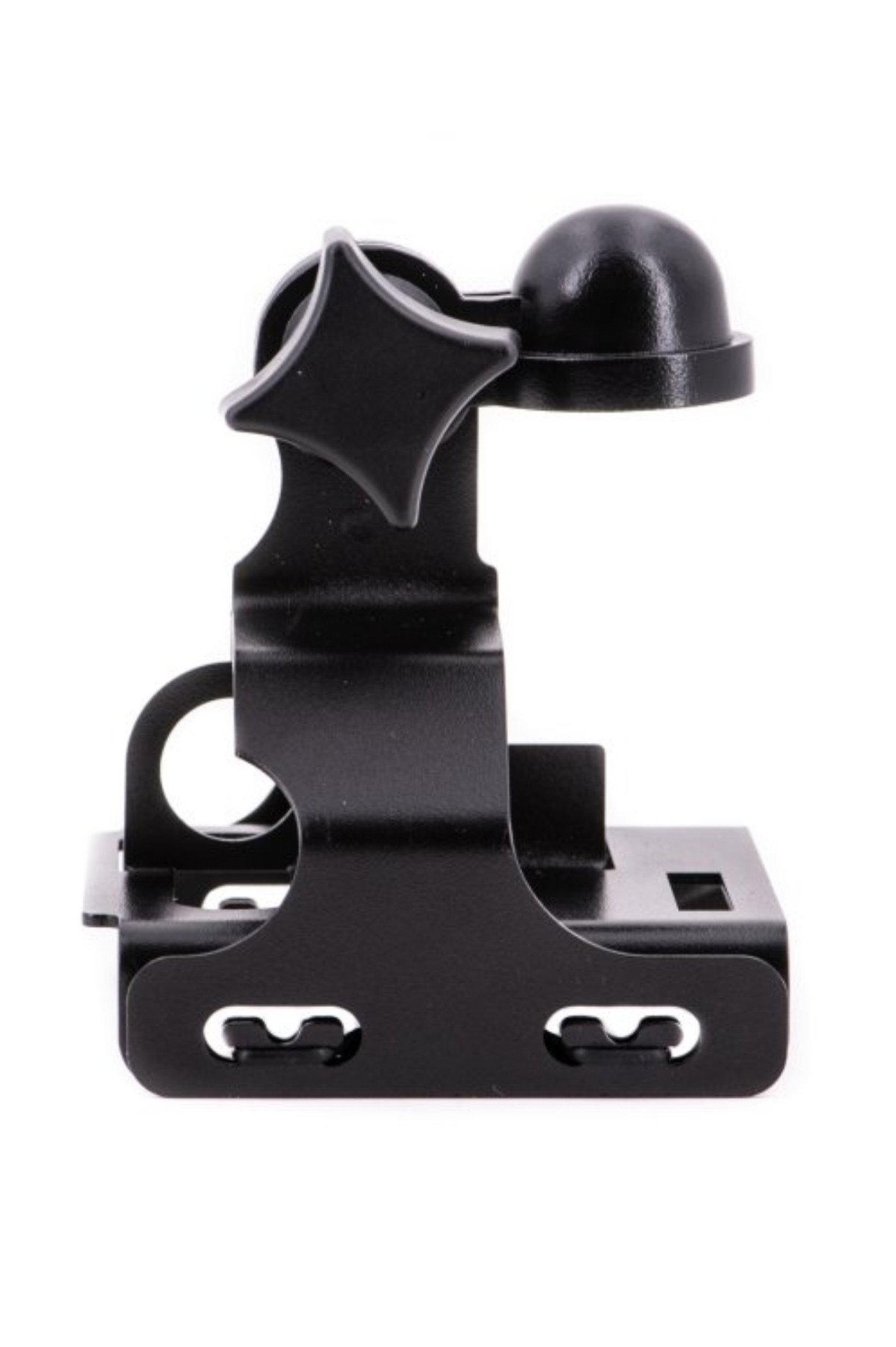

Dimensions - With Shock Mount: 6.0625" (15.4 cm) tall × 2.903" (7.37 cm) wide × 5.4375" (13.81 cm) deep
Power Requirements: P48, 1.6 mA
Weight: 1.98 lbs (0.9 kg)
RoHS: Compliant
Model #E100SX
