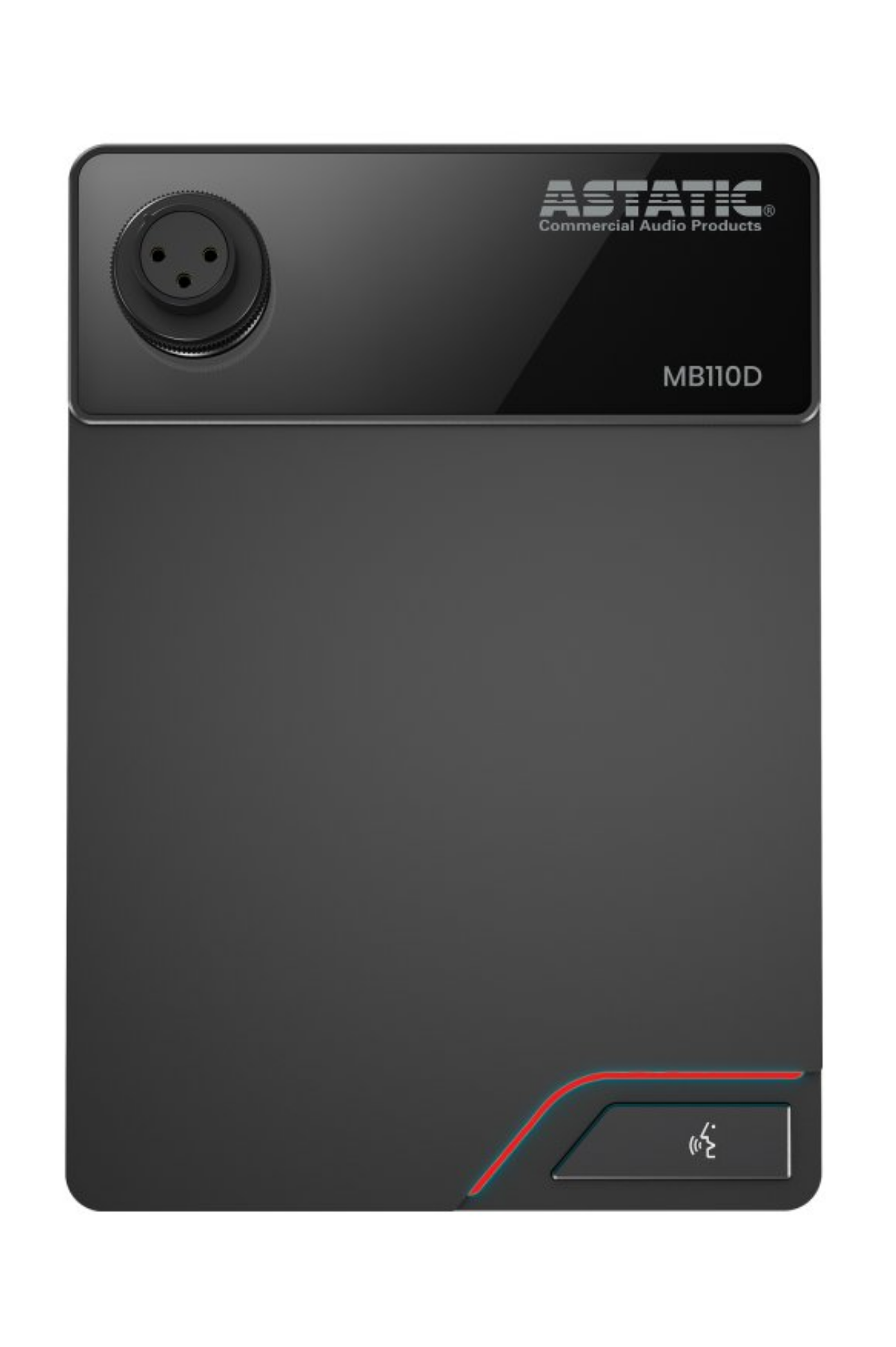

The Astatic MB110D is a professional Dante® enabled microphone desk base designed to bring networked audio connectivity to standard phantom powered condenser gooseneck microphones. Intended for conference rooms, council chambers, distance learning facilities, and high end installed sound systems, the MB110D connects directly to a Dante audio network via standard Ethernet—eliminating the need for traditional analog audio cabling. A rugged die cast metal base, integrated vibration isolating pads, and a locking XLR microphone input ensure stable, reliable performance in permanent installations.
The MB110D combines clean audio transport with flexible system control. An integrated touch sensitive user switch with dual color LED indicator supports multiple operating modes, including push to talk, push to mute, or toggle operation, configurable locally or via Dante control software. The desk base provides six step input gain adjustment, a switchable 150 Hz low cut filter, and remote control of key parameters such as gain, phantom power, and LED status. Powered via PoE (IEEE 802.3af), the MB110D integrates seamlessly into modern IP based AV infrastructures while delivering consistent, high quality speech reinforcement.
Details:

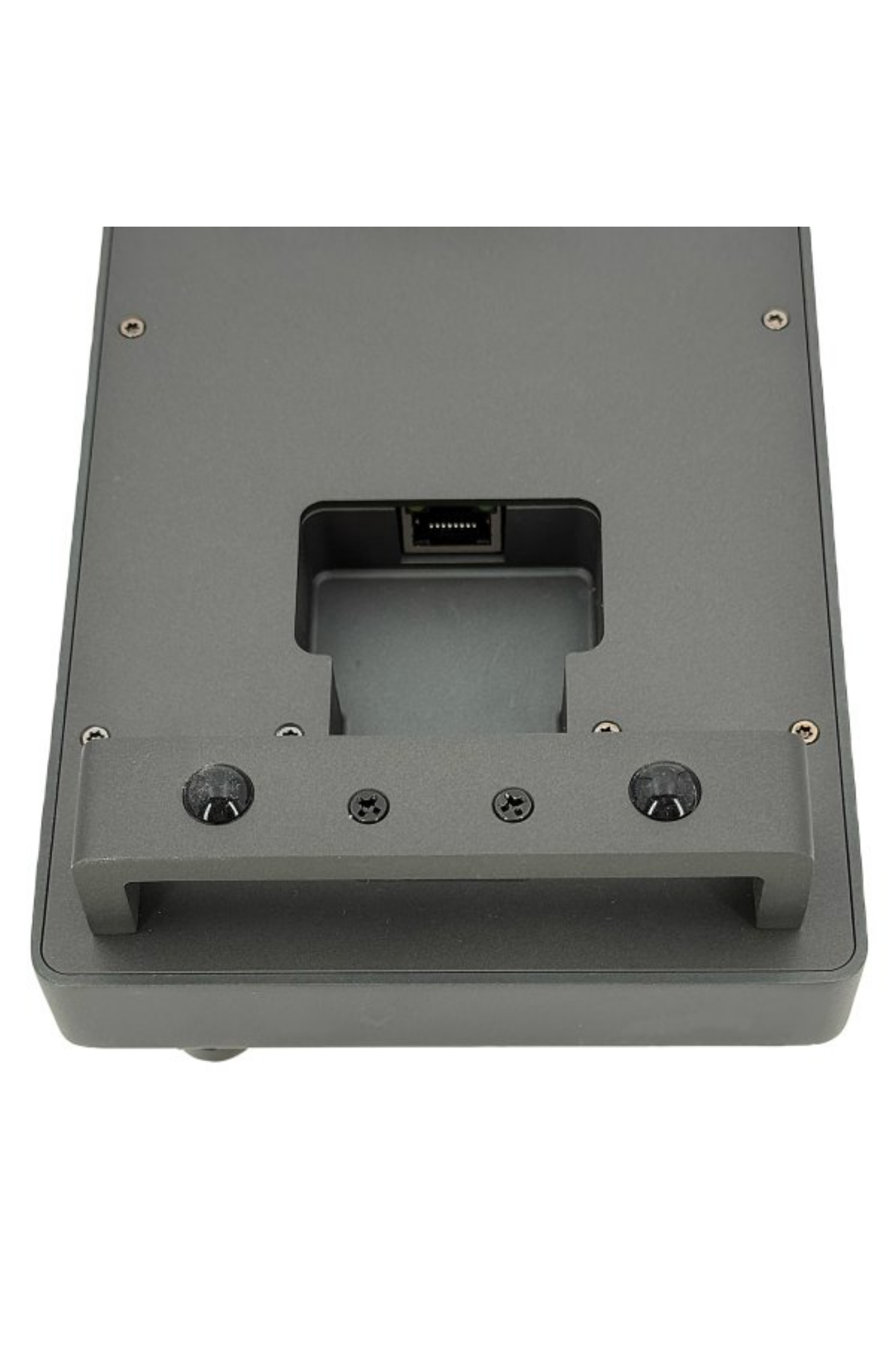

Dante® networked audio output (RJ‑45) — direct connection to IP audio systems

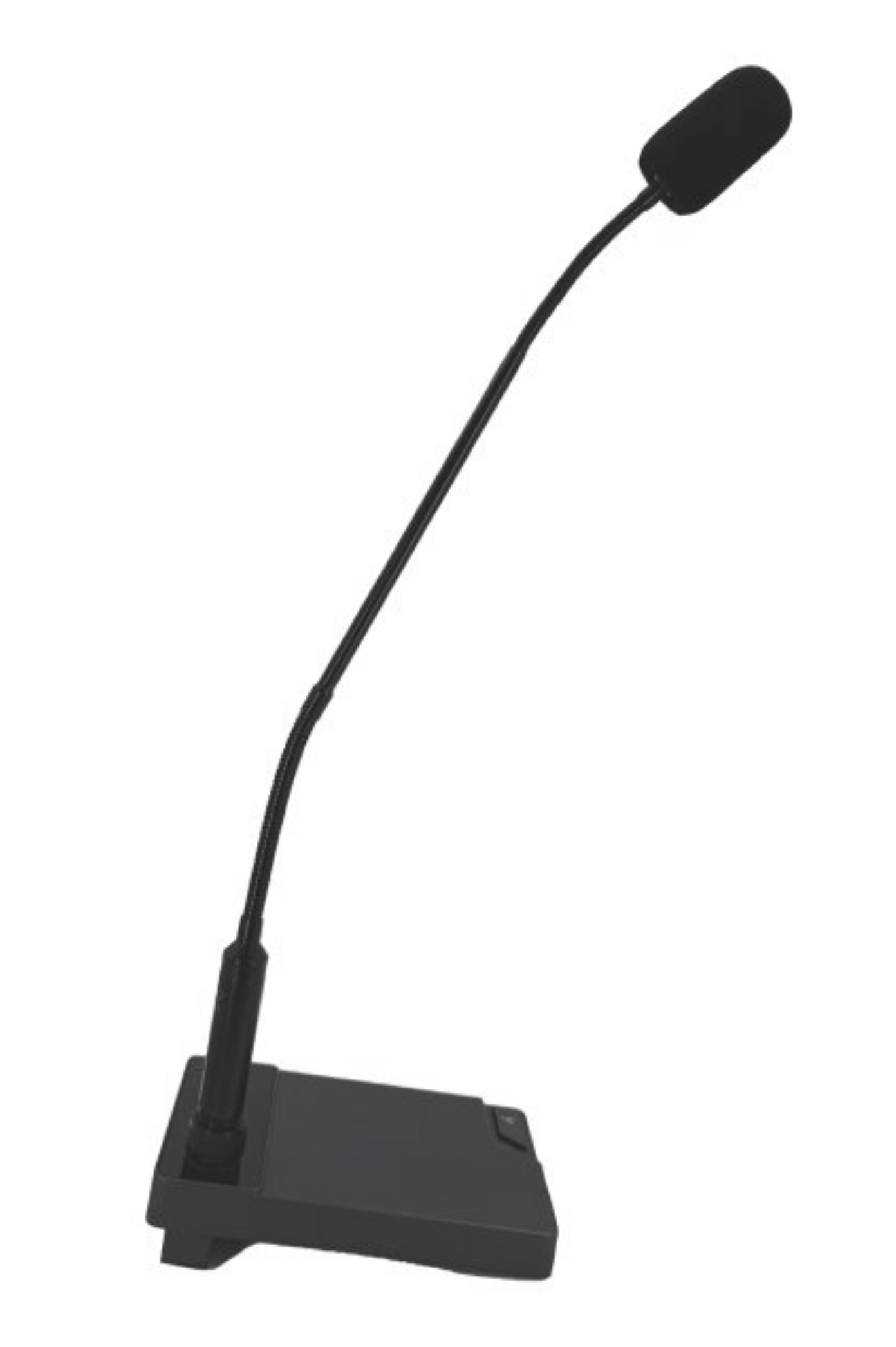

Compatible with phantom‑powered condenser gooseneck microphones
Touch‑sensitive user switch with configurable talk/mute operation

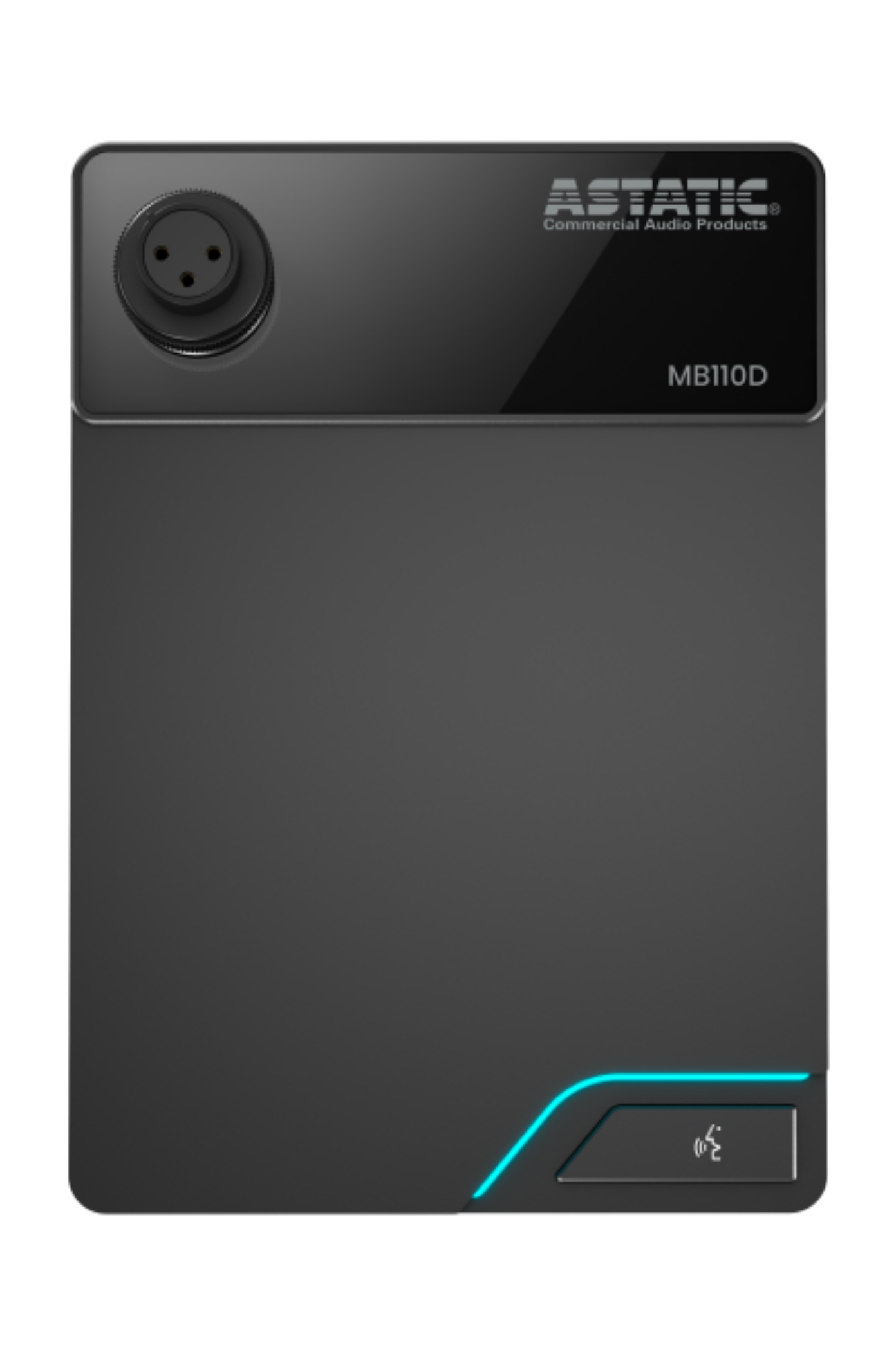

Red/green LED status indicator for clear microphone state visibility
Six‑position input gain adjustment for precise level matching
150 Hz low‑cut filter (18 dB/octave) reduces low‑frequency noise without affecting speech clarity
PoE‑powered (IEEE 802.3af) — no external power supply required
Heavy die‑cast metal construction with vibration‑isolating base for installed environments
Local or remote control via Dante Controller and compatible microphone management software
Specifications:
Product Type: Dante® microphone desk base
Frequency Response: 20 Hz – 20 kHz
Input Impedance: 2.2 kΩ
Maximum Input Level: 0 dBu @ +20 dB gain
Signal‑to‑Noise Ratio: 65 dB (1 kHz, 1 Pa)
Phantom Power Output: 48 V DC
Power Requirements: PoE IEEE 802.3af
Power Consumption: 2.3 W
Microphone Input: 3‑pin XLR female
Audio / Network Output: RJ‑45 (Dante®)
Network Speed: 100 Mbps
Recommended Cable: CAT5 or CAT6

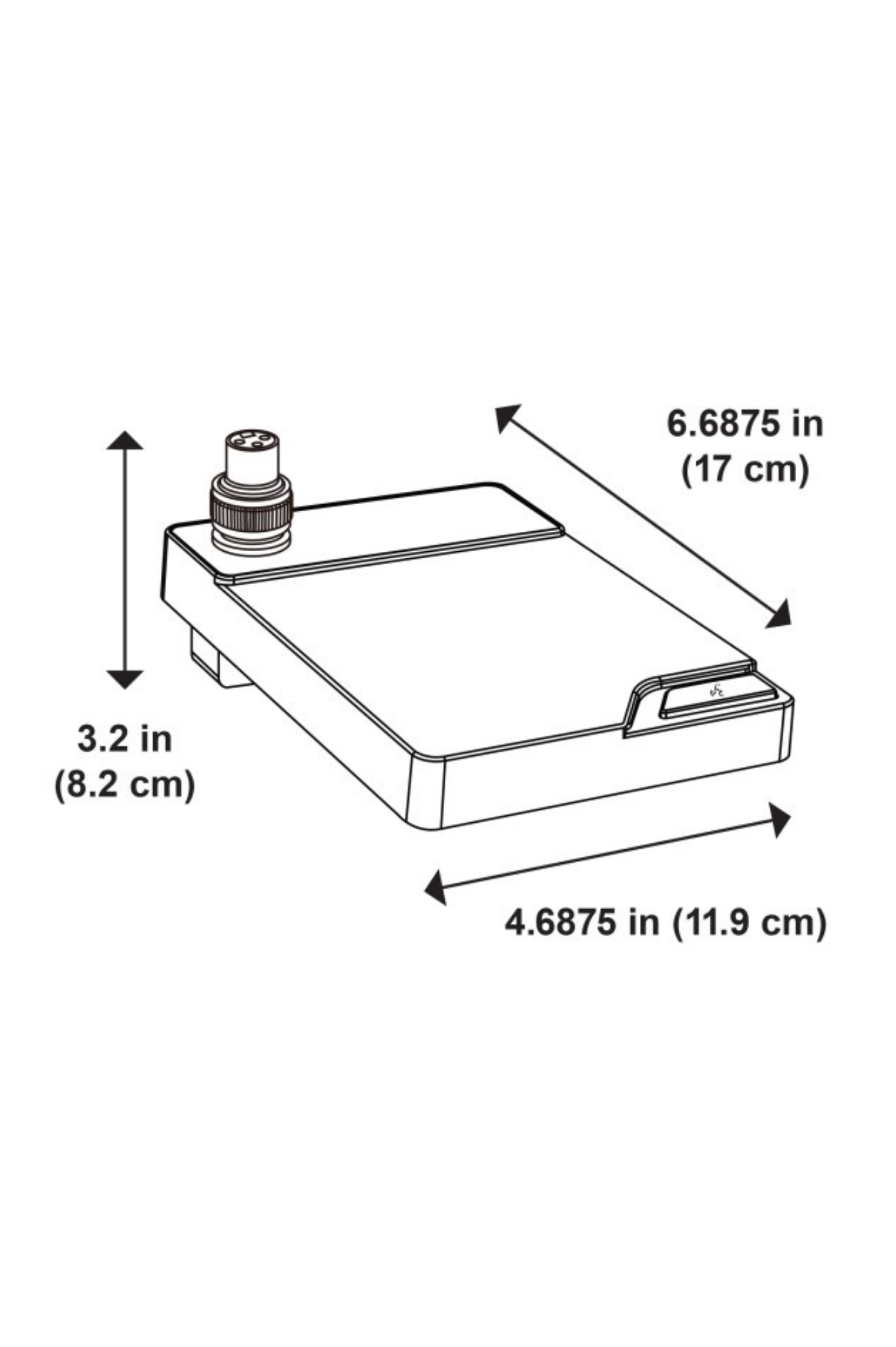

Dimensions: 170 × 120.3 × 48.5 mm
Weight: Approx. 720 g
Model #MB110D
