DPA 4080 Film Microphone Kit **SPECIAL ORDER**

Brand: DPA Microphones

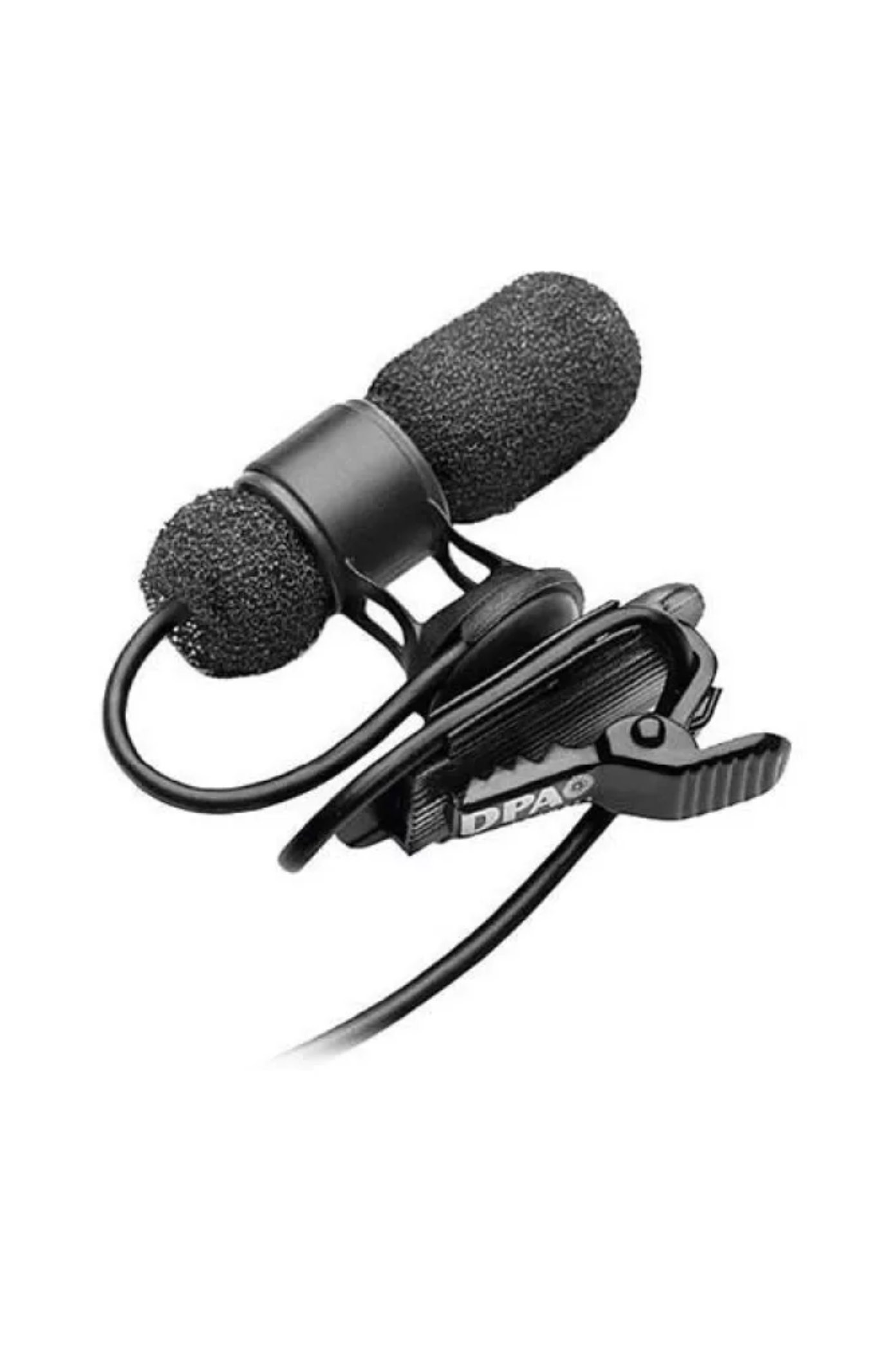

The discreet mini 4080-DC-DB10 Miniature Cardioid Lavalier Microphone with a Microdot termination from DPA Microphones is purpose-built for clear, natural speech reproduction in broadcast, conference, and live applications, whether in the controlled environment of a studio or out in the field. It includes a pre-EQ'd 4 dB presence boost to help further accentuate vocals and the speaking range for improved intelligibility and presence on recordings and PA systems. The compact 4080 can be clipped to either left or right buttoned shirts for flexible placement and comes supplied with both black and white pop filters for discreet, professional, and adaptable use.

Features include:

• Excellent speech reproduction

• Discreet, compact design

• Fits both left and right buttoned shirts

• For Broadcast, Conference, or Live Use

• Pre-EQ'd 4dB Presence Boost

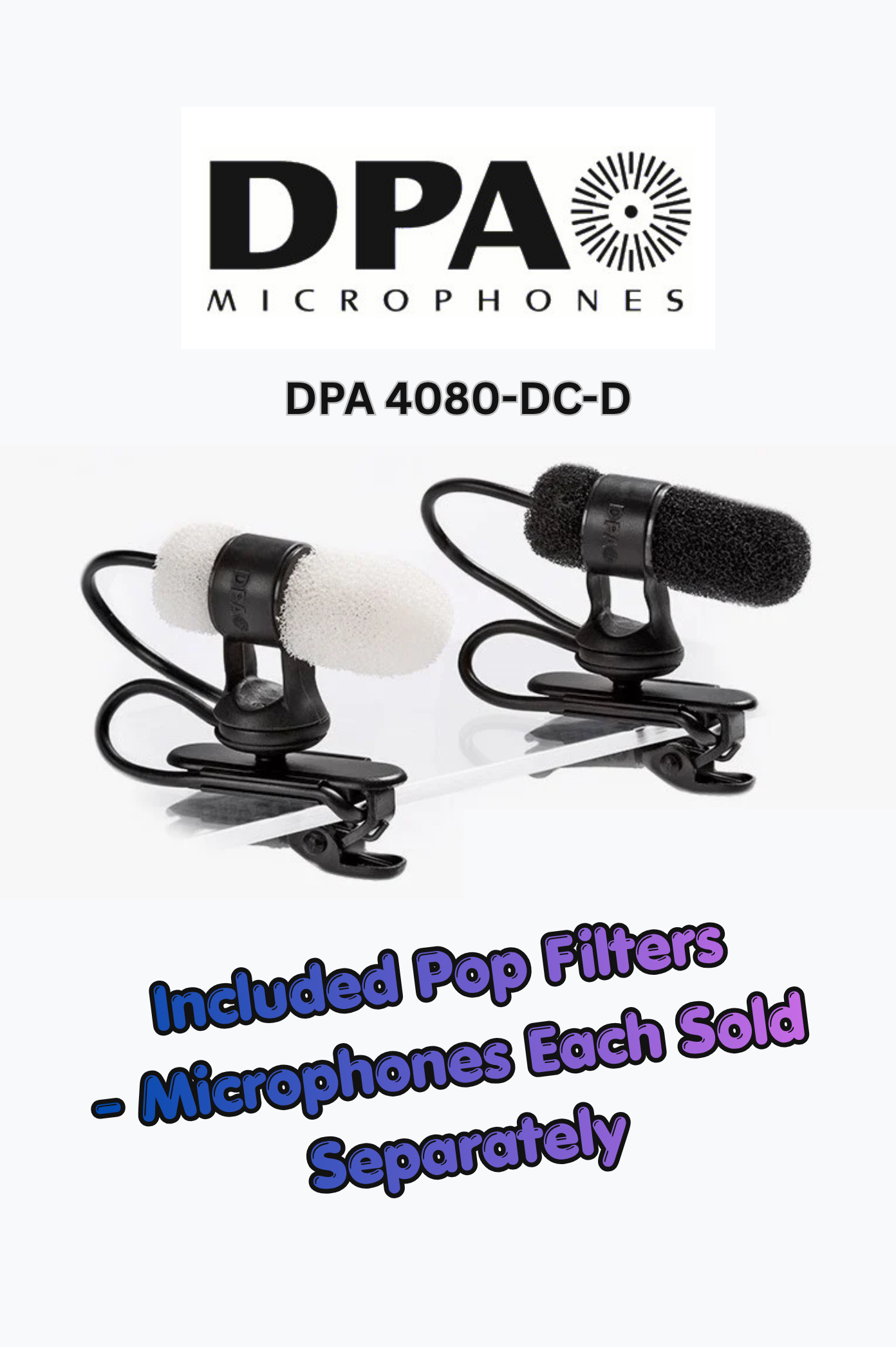

• Delivered with both black and white pop filters

• Modular adapter system fits most professional wireless systems

Specifications:

• Polar Pattern: Cardioid

• Principle of Operation: Pressure gradient

• Cartridge Type: Pre-polarized condenser element with vertical diaphragm

• Frequency Range: 250 Hz to 17 kHz with a typical 4 dB soft boost @ 4 to 6 kHz (-5 dB @ 100 Hz), +/- 2 dB

• Sensitivity: 20 mV/Pa at 1 kHz; -34.4 dB re. 1 V/Pa (nominal, +/-3 dB @ 1 kHz)

• Equivalent Noise Level A-Weighted: Typical: 23 dBA re. 20 æPa, Maximum: 26 dBA

• S/N Ratio: 71 dBA, 1 kHz at 1 Pa (94 dB SPL)

• Dynamic Range: Typical: 100 dB

• Maximum Sound Pressure Level (SPL): Peak Before Clipping: 134 dB

• Output Impedance: 30 to 40Ω

• Cable Drive Capability: Up to 984' (300 m)

• Connector: Microdot termination

• Cable Length: 4' (1.2 m)

• Cable Diameter: 0.06" (1.6 mm)

• Dimensions (OxL): 0.4 x 1.2" (10 x 30 mm)

• Weight: 0.5 oz (15 g)

• Package Weight: 0.135 lb

• Box Dimensions (LxWxH): 4.3 x 2.8 x 1"

IDENTIFY the Kit you need!

Model #s:

• 4080-DC-D-B00 - 4080 CORE Cardioid Mic, Normal SPL, Black, MicroDot

• 4080-DC-D-B03 - 4080 CORE Cardioid Mic, Normal SPL, Black, 3-pin LEMO

• 4080-DC-D-B10 - 4080 CORE Cardioid Mic, Normal SPL, Black, TA4F Mini-XLR

• 4080-DC-D-B34 - 4080 CORE Cardioid Mic, Normal SPL, Black, Mini-Jack

**This item is a “Special Order”, Prof Erny’s Music works with select vendors to offer products that ship directly from supplier distribution centers to your door. This reduces extra handling by third-party shippers and gives customers access to a wider selection of quality items not usually available locally. This item ships from warehouses on either the West Coast or East Coast. Delivery times vary, but are typically 7–14 business days to your door after the order is placed.**
